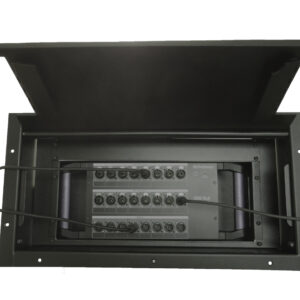

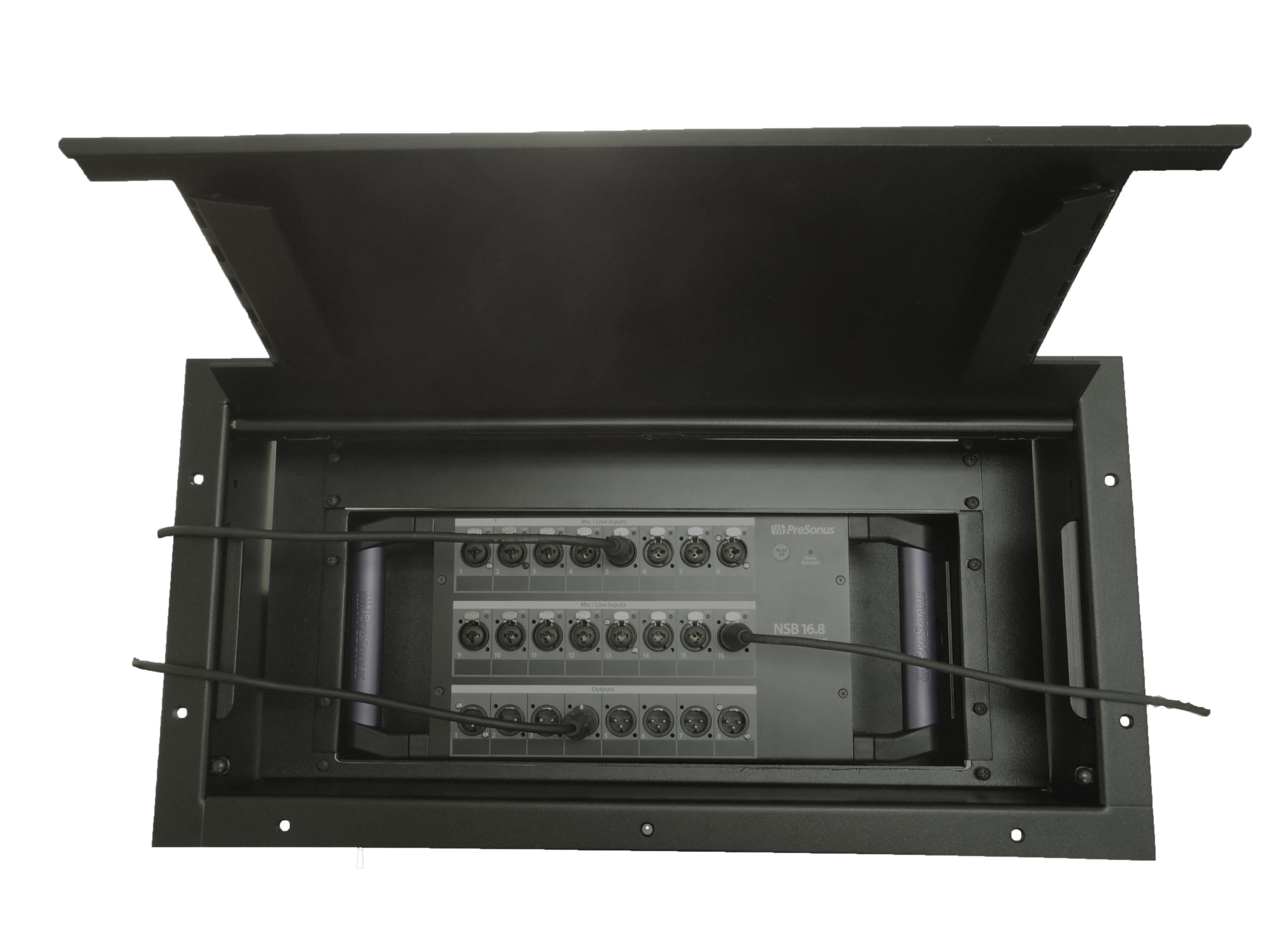

Configured to receive a PreSonus NSB Stage Box (NSB 8.8 or 16.8), this permanent install Partnership Pocket allows the PreSonus piece to securely rest in the 175 Stage Pocket nesting frame while connectivity cables egress neatly onto the stage floor through dual hinged cable exits in the pocket lid
Sized to securely fit between typical stage floor joist framing, this Stage Pocket arrives with the internal nesting bracket installed and can accept an additional 1 RU rack panel for added connectivity or PDU installation.
Removable hinge pins allow the lid to be disconnected for easy pocket floor installation. The

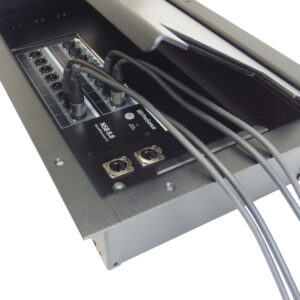

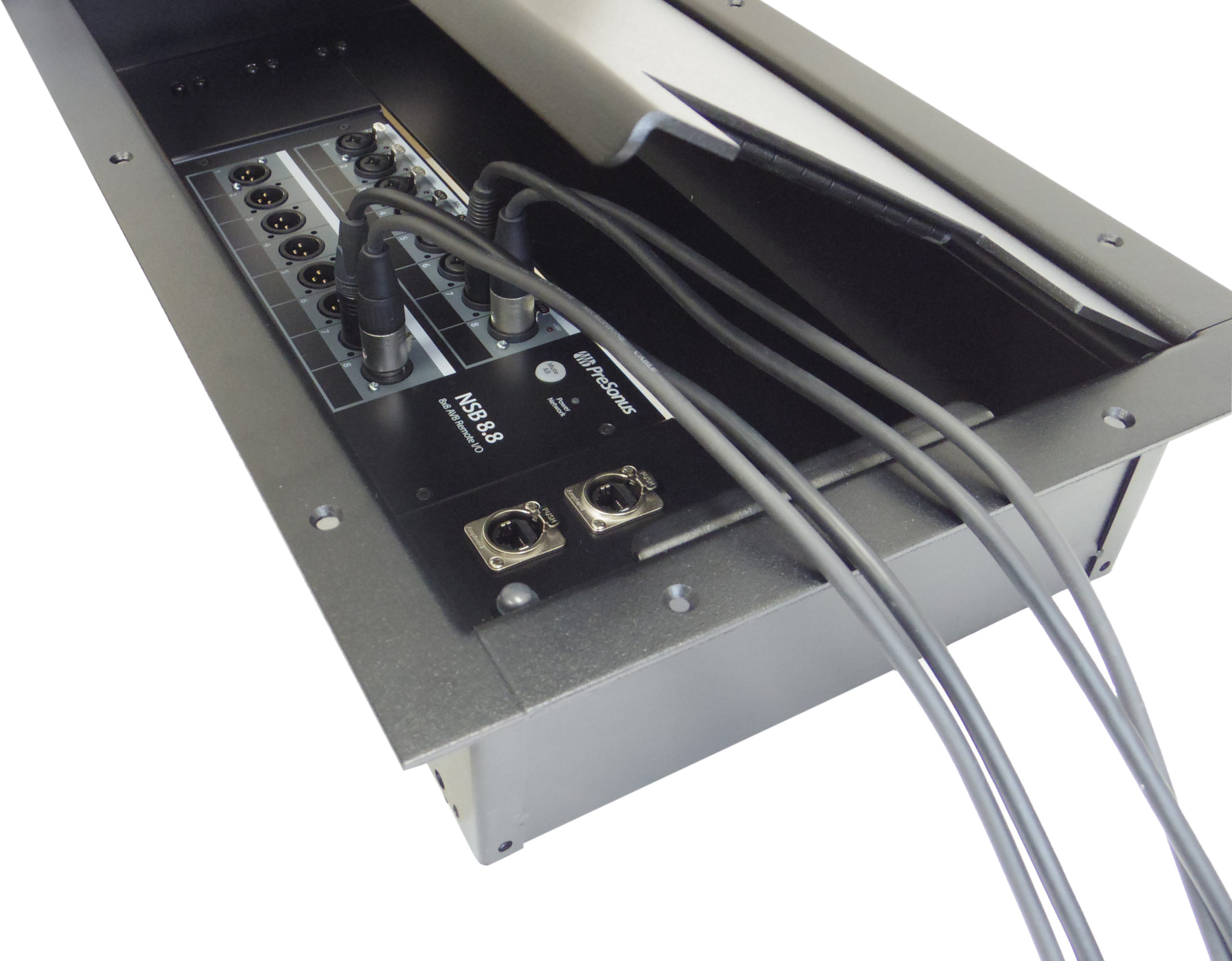

solid steel lid is designed to resist bending even under the most severe stage load. Dual hinged cable exits on opposing sides of the Stage Pocket lid pivot down to allow many cables to exit, or pivot flush to close all openings.
NESTING BRACKET Design:

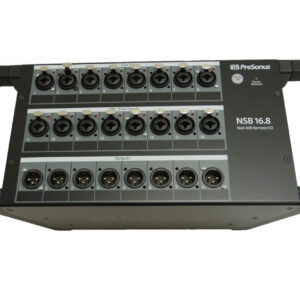

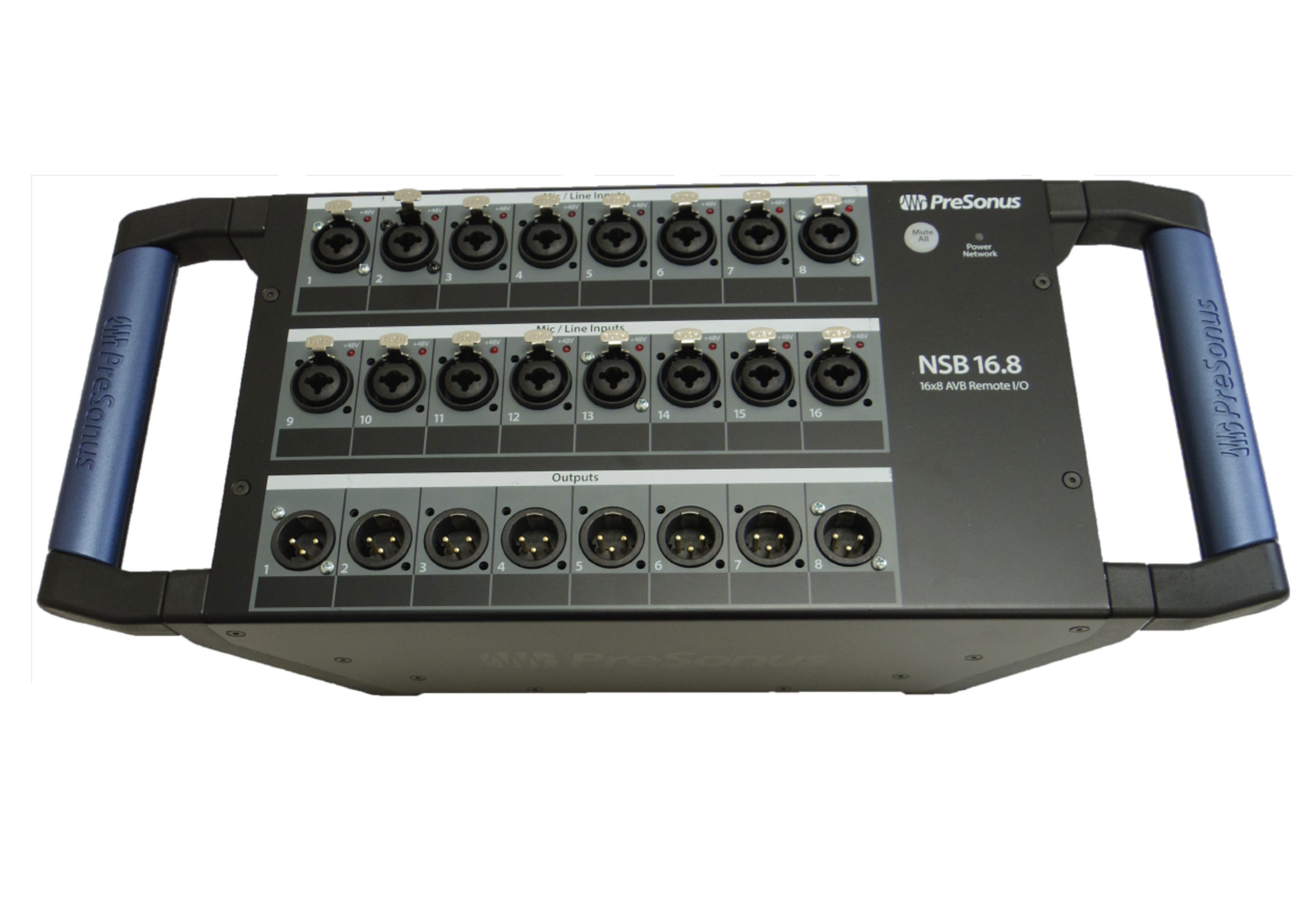

Specifically for NSB Stage Boxes, the Pocket Nest accepts one networked stage box to provide appropriate clearance for cable end connectivity while protecting the connections and electronics under the steel lid. Two single gang access panel positions are located in the bracket.
Finishing accessories for the PreSonus Stage Pocket are available in this kit. Included are (1) single gang high voltage conduit connection, (1) single gang grommeted feed thru access panel for power cords, and (1) magnetic neoprene dust cover for electronic I/O protection.
CONNECTRIX PANELS & CONNECTORS:
Designed to provide flexibility, standard RPL-100 Series Panels are always in-stock and mate perfectly with this pocket. Hundreds of isolated connectors are available for no-charge mounting and immediate delivery. Loaded and labeled rack panels can be delivered along with your Stage Pocket in one package, in less than 3 days from time of order.

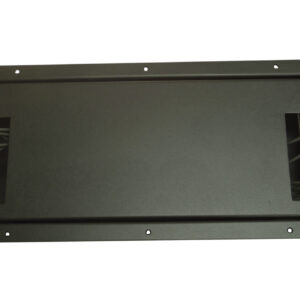

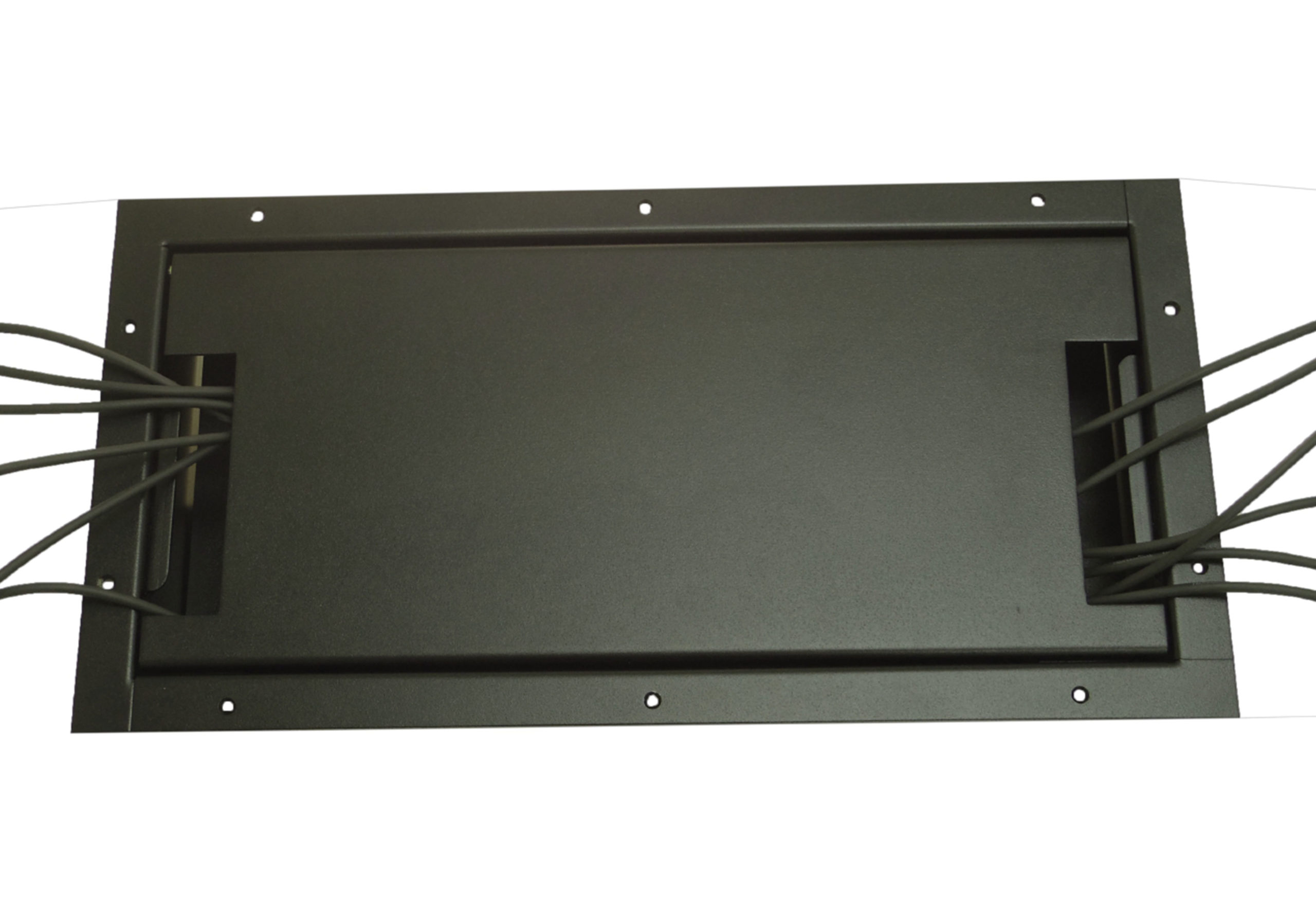

The 175SLBK Stage Pocket is sized to securely fit between typical floor joist framing. The above floor Mounting Bezel extends to stabilize the pocket with multiple mounting screw positions on each side.
1. Position Stage Pocket, between floor joists if possible
2. Cut floor 22.5” x 10.375” taking extra care with not to snag carpet
3. Remove the hinged lid from the bezel by placing the pocket on its side and pressing one hinge pin to allow the lid to dislocate (do not loose these parts)
4. Index the lid-free pocket bezel and guide it into the floor cutout
5. Secure with provided screws
6. Reinstall springs and hinge pins to snap the lid back into place
