Description
The NEW RackWell Stage Pocket supports design integration of rack-mountable digital snakes in the stage floor, where they can be easily accessed and used. On-stage connectivity is protected under the RackWell lid, while cables egress neatly through hinged cable exits onto the stage floor.
Features

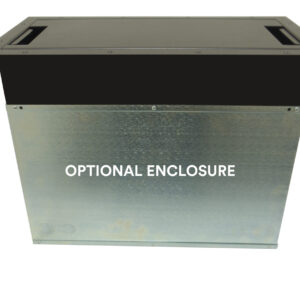

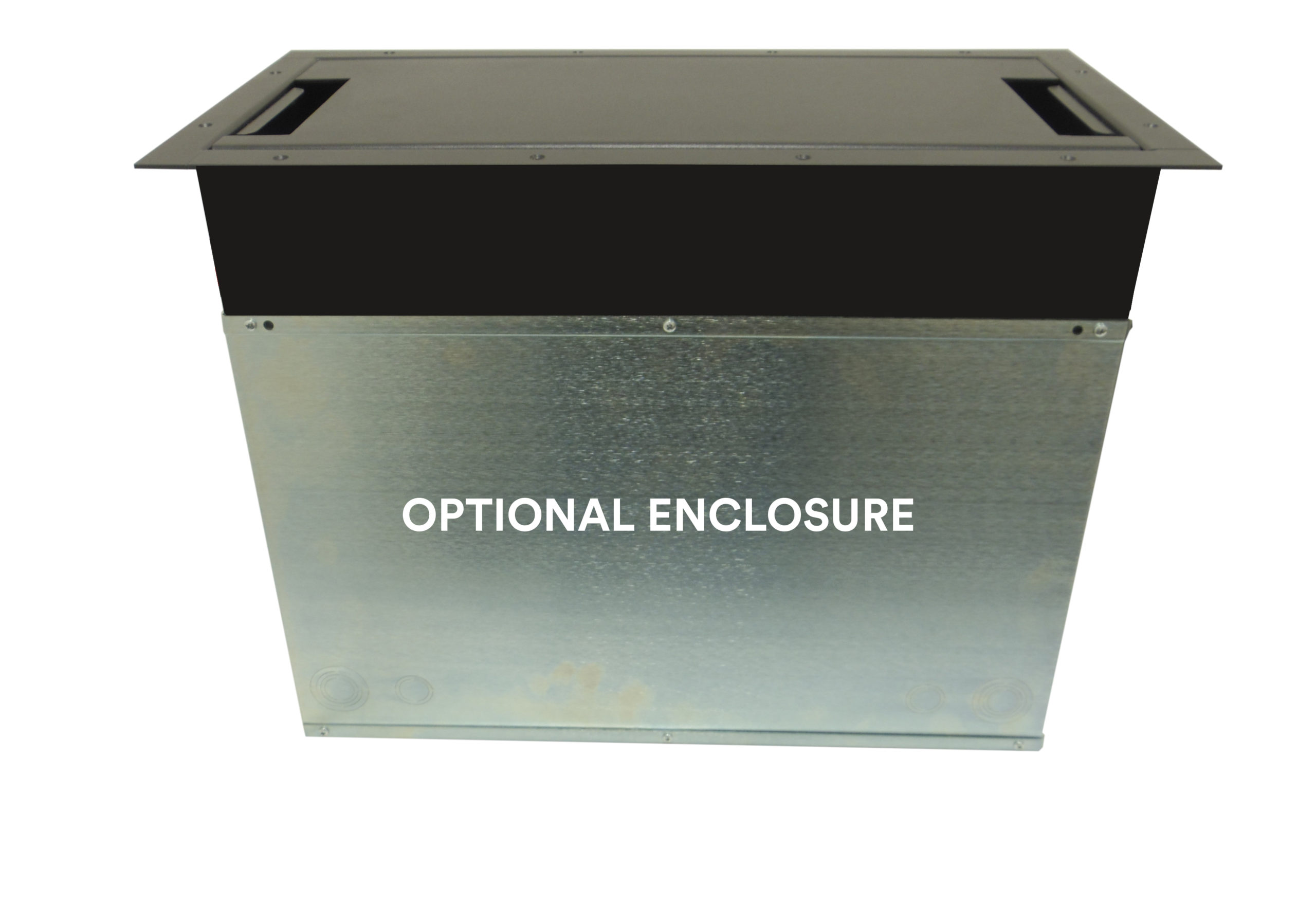

The RackWell Stage Pocket allows a variety of digital rack mounted products to be installed vertically in the stage floor, regardless of the product depth. Completely open under the rack rail for ventilation and flexibility of depth, an optional enclosure kit can encapsulate the under-floor portion if needed. Total capacity is 5ru.
CAPACITY:
With our top-mount bracket system, the RackWell can accommodate suitable equipment up to 5 rack spaces. Typical 2 or 3 space digital equipment installation allows for additional rack panel space inside the recessed Stage Pocket.
EQUIPMENT ACCOMODATION:

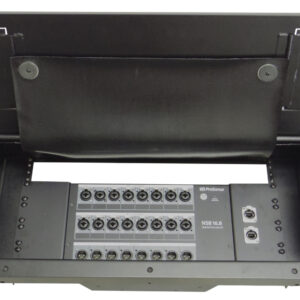

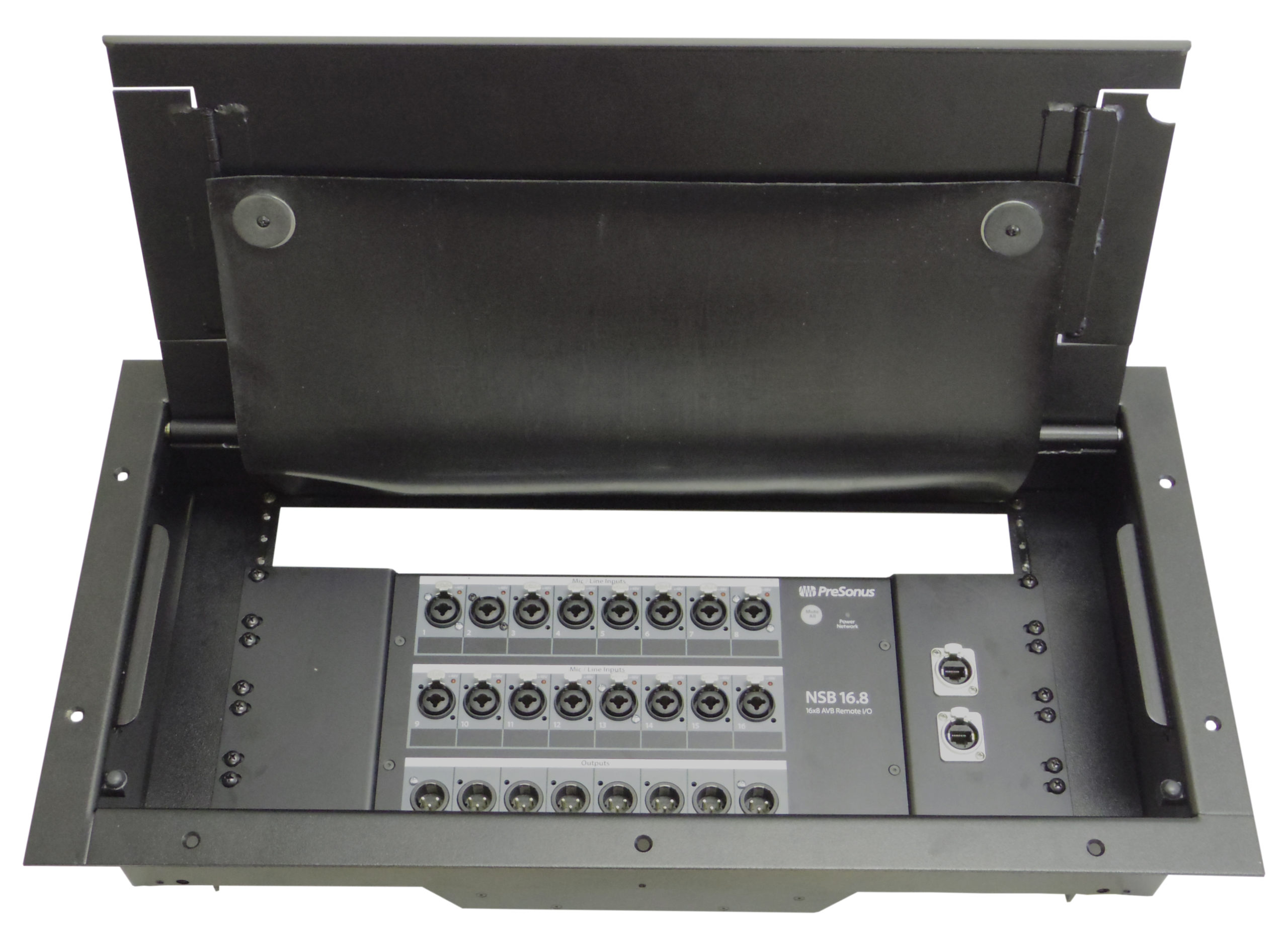

Fixed and recessed rack rail placement accommodates rackable equipment with 4 inches of receptacle clearance when the RackWell lid is closed. Dual hinged cable exits on opposing ends of the lid pivot down to allow many cables to exit, or pivot flush to close all openings. A protective neoprene dust cover protects I/O when placed over installed equipment.
CONSTRUCTION:
Engineered to resist bending even under severe stage load conditions, the 10ga RackWell lid/flange assembly, and 16ga pocket body, are die welded for strength, dimensional stability, and consistency.
INSTALLATION:
The under floor pocket skirt is 10.25” wide to securely fit between typical floor joist framing. Cross- frame installation will require additional support equal to the floor loading requirements. The pocket mounting flange extends to stabilize the pocket, with 2-4 mounting screw positions on each side. Hinged with spring-loaded pins, the RackWell lid closes to rest flush on rubber lid stops that cradle and prevent lid rattle.
5 RU
24.3″ x 12.3″ deep
22.5” x 10.375”
4″ deep
https://www.acebackstage.com/wp-content/uploads/2020/02/125SLBK_Data-Sheet.pdf
https://www.acebackstage.com/wp-content/uploads/2020/02/125XXXX.1.pdf
https://www.acebackstage.com/wp-content/uploads/2020/02/125XXXX.1.dwg
Made-to-order custom panels are precision cut and labeled to your exact specifications from a variety of materials. Computer Assisted Drafting (CAD) systems feed data to our rotary CNC machines or laser light cutting systems that define your panel as it is cut. Our unique method of ganged material production results in accurate, fast, and low cost custom panels.
Custom details can be provided by simply emailing manual or computer drawn examples of your requirements. Simple communication from you will allow ACE to quickly facilitate a detailed price quote and computer panel layout for your approval and revision.
Customization details are specific to you and your job, so review the list of options below and let us know what’s important to you. We will work diligently to suggest the best possible solution for your specific requirements, taking all of your circumstances into consideration.
(Insert XLS graph)
Remember that custom placement and labeling of connectors in our pre-made CONNECTRIX Panels will always be the best value, providing customization at off-the-shelf pricing.Labeled CONNECTRIX Wall, Rack, or Stage Pocket Panels ship in less than three days from receipt of order.
